Introduction and Application
This instrument is controlled by intelligent microcontroller chip, with high accuracy and high reliability; it can be used to measure grounding resistance of various power facilities wiring, electrical equipment, lightning protection equipment and other grounding devices, and it can also measure ground voltage. (Note: This instrument is not suitable for harsh outdoor environmental conditions, such as raining, lightning, etc.)

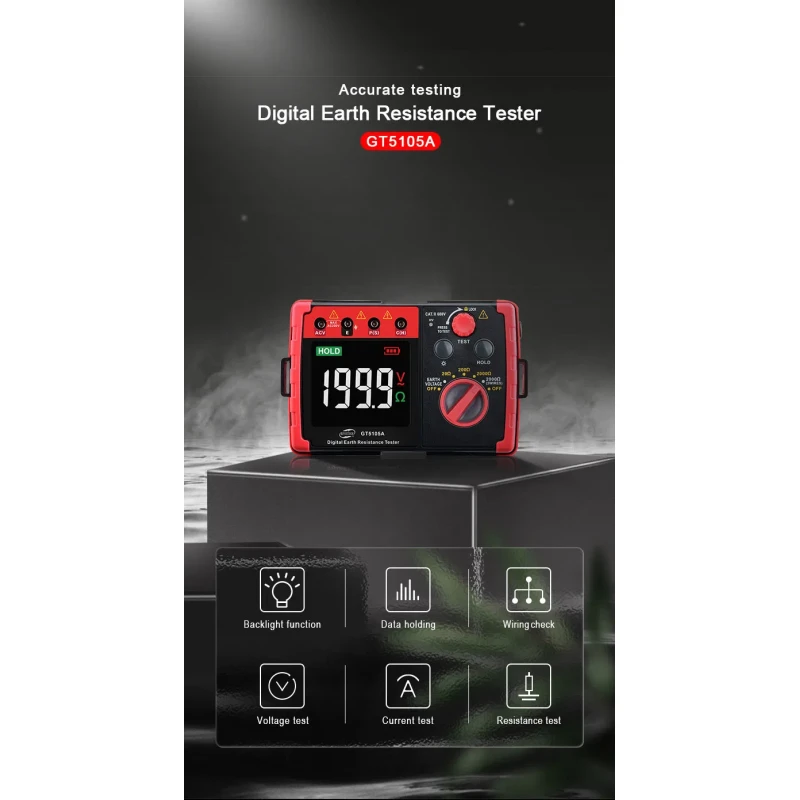

Features
Backlight a battery detection function.
Data holding.
"OL" stands for over range

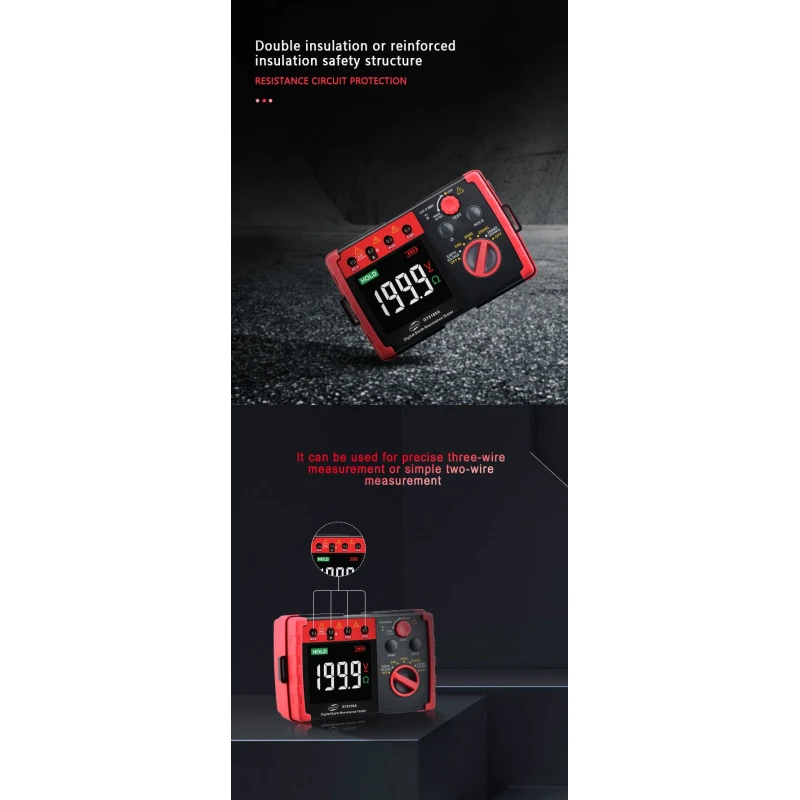

Double insulation or reinforced insulation safety structure.
When measuring ground resistance, if C or E end of test lead is not in good contact,"...Warning appears on LCD.
It can be used for precise three-wire measurement or simple two-wire measurement.
Product Technical parameter
1.Measurement range and measurement error (under condition of 20℃ + 5℃and≤75%RH)
| Basic Function |
Range |
Accuracy |
Resolution |
| Ground Resistance |
20Ω |
±(2%+10) |
0.01Ω |
| 200Ω |
±(2%+3) |
0.1Ω |
| 2000Ω |
±(2%+3) |
1Ω |
| 2000Ω(two wires) |
±(2%+5) |
1Ω |
| Ground voltage |
200V |
±(2%+5) |
0.1V |
auxiliary grounding resistance 500Ω;Error + 5% ;Grounding voltage ≤10V AC
2. Application standard:
IEC61010-1 CAT.11 600V Pollution degree 2;
CAT.15000VPollution degree 2;
IEC61326-1(EMC standard);
IEC 60529(IP40)
3. measurement method:
(1)Ground voltage measurement:average response;
(2)Groundresistance measurement: test signal frequencyabout 820Hz,current: 20Ω about 3.2mA.
4. Working environment: temperature: 5°C~ 40°C; relative;
humidity:≤80~RH (no fog)Altitude≤2000 meters.
5. Storage conditions: temperature:-20~60 °C; relative;
humidity:≤70% RH (no fog).
6. Power supply: 9V power supply [1.5V (No. 5 alkaline battery)* 6]
7. Overload protection:Groundresistance:200VAC(10 seconds);
Ground voltage:400VAC(30 seconds).
8. Insulation resistance:The insulation resistance betweenmeasurement circuit and case is not less than 20MΩ.
9. Dimensions:176mm*77mm*110mm.
The contents included in the shipment:
Digital Tester:1pc.
English Instruction Manual:1pc.
1.5V (No. 5 alkaline battery):6pcs (for air shipping, not included).
Soft cloth bag: 1pc.
Gray box: 1pc.
5 meters of green test lead (with alligator clip):1pc.
10 meters of yellow test lead (with alligator clip):1pc.
20 meters of red test lead (with alligator clip):1pc.
Auxiliary ground nail:2pcs.
Strap:1pc.
