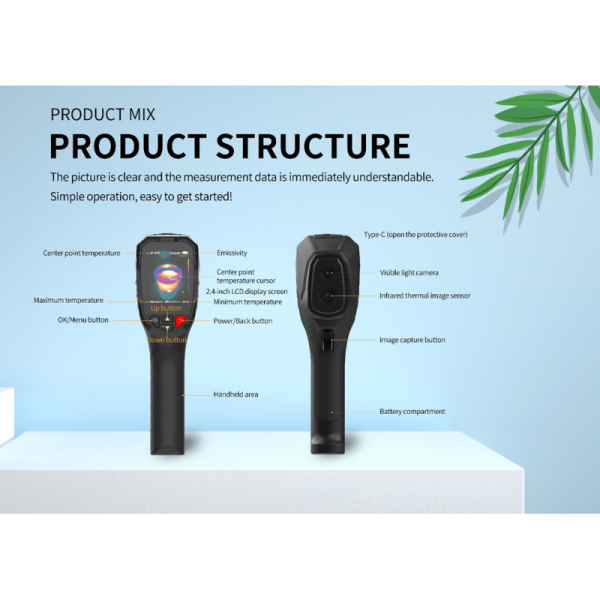

HT-H101,HT-H100 Handheld Infrared Thermal Imager

Name: HTH101HTH100 Handheld Infrared Thermal Imager
Brand: Bestone, HTI
Price: 1 USD

Quality HT-H101,HT-H100 Handheld Infrared Thermal Imager wholesale

Model Number : HT-H101,HT-H100

Certification : CE,ROHS,FC

Infrared resolution : 96x96 ISR (240x240)

Frame rate : ≤18Hz (HT-H101), ≤25Hz (HT-H100)

Field angle : 50°(H)×50°(V)

Place of Origin : CHINA

Payment Terms : T/T,Western Union

Product weight : 249.5g

Spectral range : 8~14μm

Delivery Time : 3-5 working days

Brand Name : Bestone, HTI

MOQ : 100

Packaging Details : Blister packaging+color card

Price : EXW US$125~US$85

Measuring range : -20℃~550℃ (-4°F~1022°F)

Supply Ability : More than 10000pcs per month

Contact Now

Applications:
Infrared thermal imaging cameras are widely used in many fields such as medical, public security, fire protection, archaeology, transportation, agriculture and geology. It is an ideal choice for electricians and maintenance technicians to quickly locate problem areas.
HT-H101,HT-H100 Handheld Infrared Thermal Imager

Features:
1. Lightweight and easy to carry.

2. Field of view Angle/focal length: 50.0°50°/1.35MM.
3. wavelength range 8 to 14 μm.
Specification:

Model	HT-H101	HT-H100(new)
Frame rate	≤18Hz	≤25Hz
Temperature measurement mode	Center point/cold hot spot tracking	Center point/highest/lowest temperature
Focusing mode	Free focus	Fixed focus
IFOV	8.89mard	no
Image display mode	Infrared/visible/dual light fusion	Infrared
Storage capacity	Built-in 8G (User available storage space is about 6.5G)	Built-in 128M FLASH (with space available for the user at about 50M)
File format	JPG/MP4	JPG
Detector Type	Vox
Infrared image resolution	96x96 ISR (240x240)
Field angle	50°(H)×50°(V)
NETD	≤60mK@25°C, F#1.0
Measuring range	-20℃~550℃(-4°F~1022°F)
Spectral range	8~14μm
Pixel spacing	12μm
Focal length	1.35mm
Emissivity	0.01~1.00
Measurement accuracy	±2°C or ±2%(maximum)
Temp. measurement resolution	0.1°C
Palettes	Rainbow/Iron red/red heat/white heat/black heat
Display screen	2.4 inches (240x320)
Image/video export the schema	USB connection computer export
Image analysis function	Supports PC offline analysis
Language	Chinese, English, German, Italian
Other Specifications
Model	HT-H101			HT-H100
Battery type	Built-in Chargeable lithium battery (18650)			Removable Chargeable lithium battery (18650)
Battery capacity	2000mAh			1000mAh
Working time	4 hours		≥ 3 hours
Storage Temperature	-20℃~+60℃(-4°F~140°F)		-10℃ ~ +50℃
Work temperature	-5℃+40℃(-4°F-104°F)
Relative humidity	10% to 85% RH (non-condensation
Product weight	249.5g
Product size	208mmx60.9mmx75.9mm

HT-H101,HT-H100 Handheld Infrared Thermal Imager

Product Tags:

handheld infrared thermal imager

digital infrared thermometer with warranty

HT-H101 thermal imaging device

HT-H101,HT-H100 Handheld Infrared Thermal Imager Images
